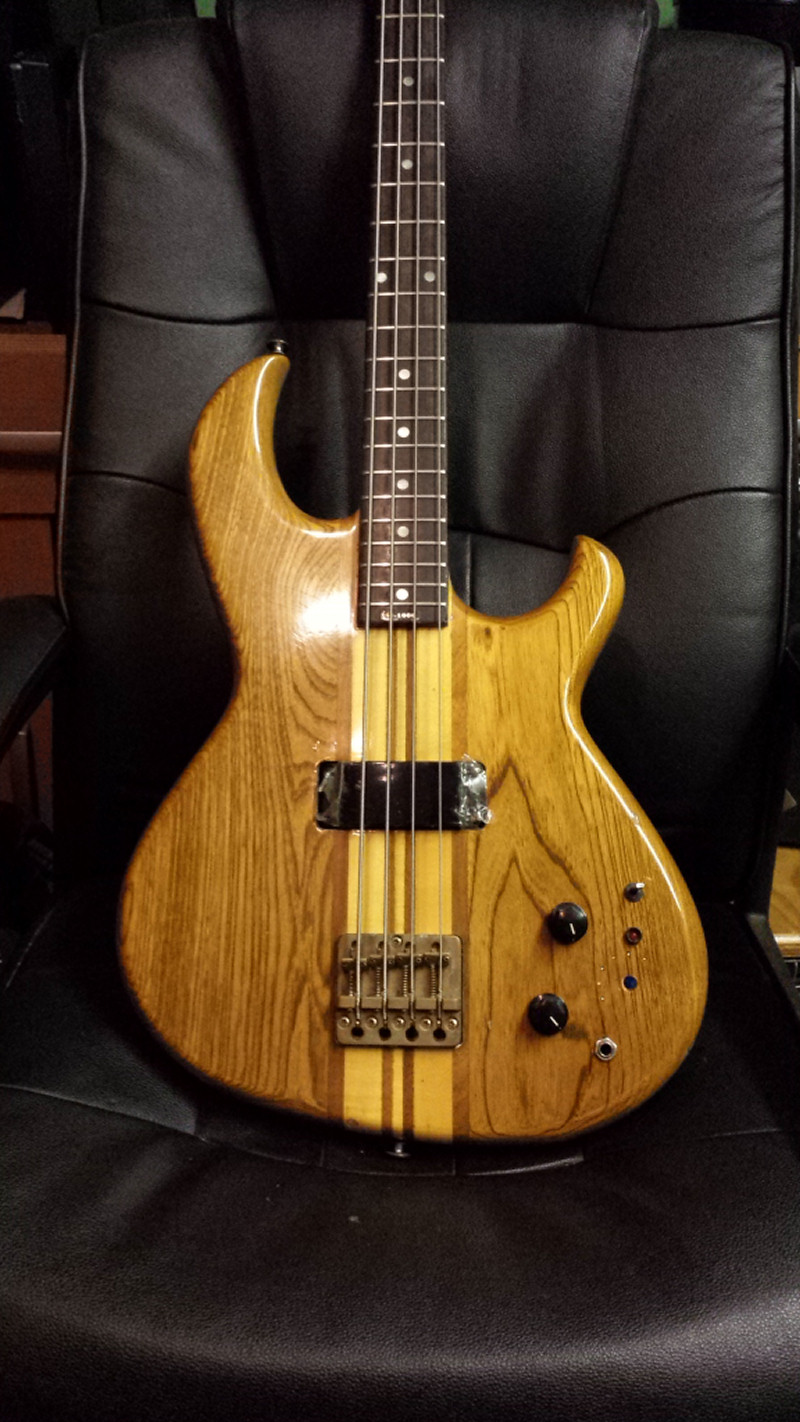

Aria SB-1000 bass

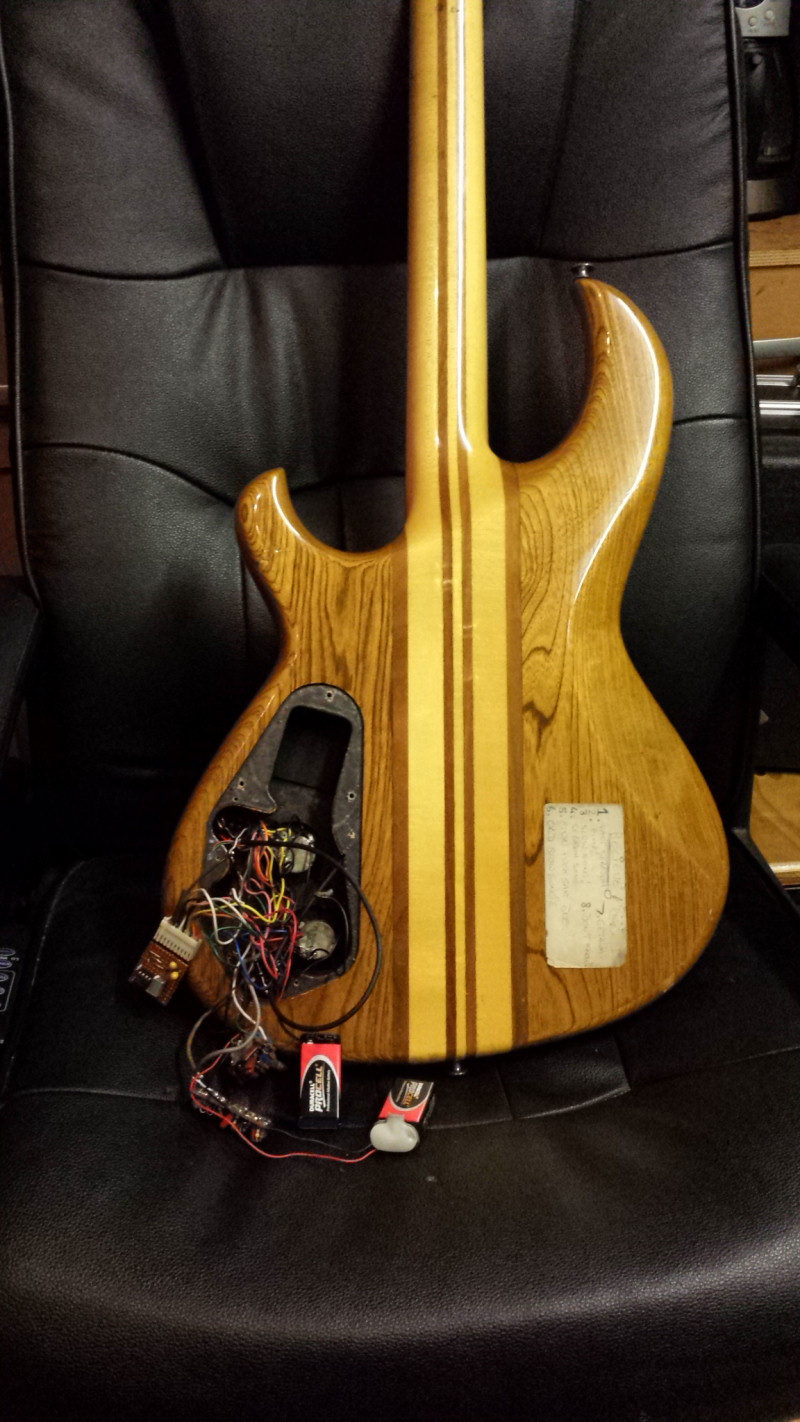

This had all the usual problems: Open circuit pickup and dead preamp electronics. Furthermore, the internal wiring was a mess. A replacement pickup was ordered from Armstrong pickups ( and the potted preamp was reverse engineered to see what was inside. In the end this was a very simple unity gain buffer amplifier that also generated its own 'earth' signal that is connected to the back of each pot. the screen of the pickup wire, and the earth wire to the bridge. The schematic for this can be downloaded below.

Aria SB-1000 bassAria SB-1000 bass


Aria SB-1000 bass wiring

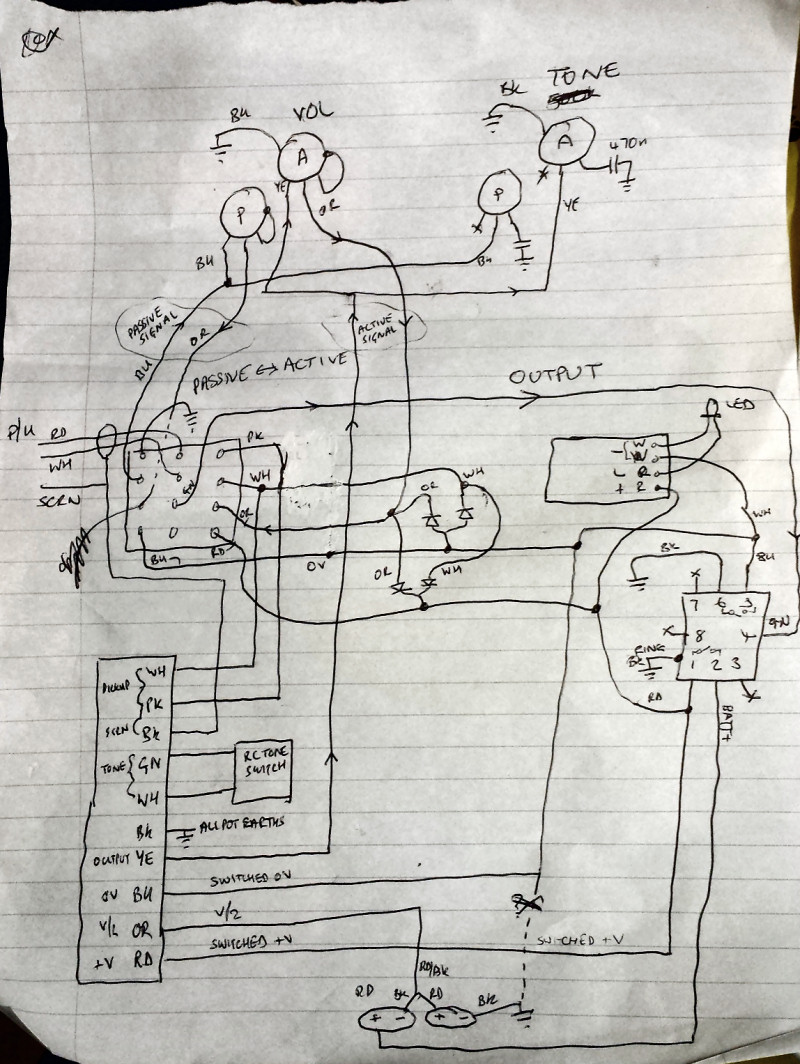

The wiring of the SB-1000


Aria SB-1000 preamp schematic

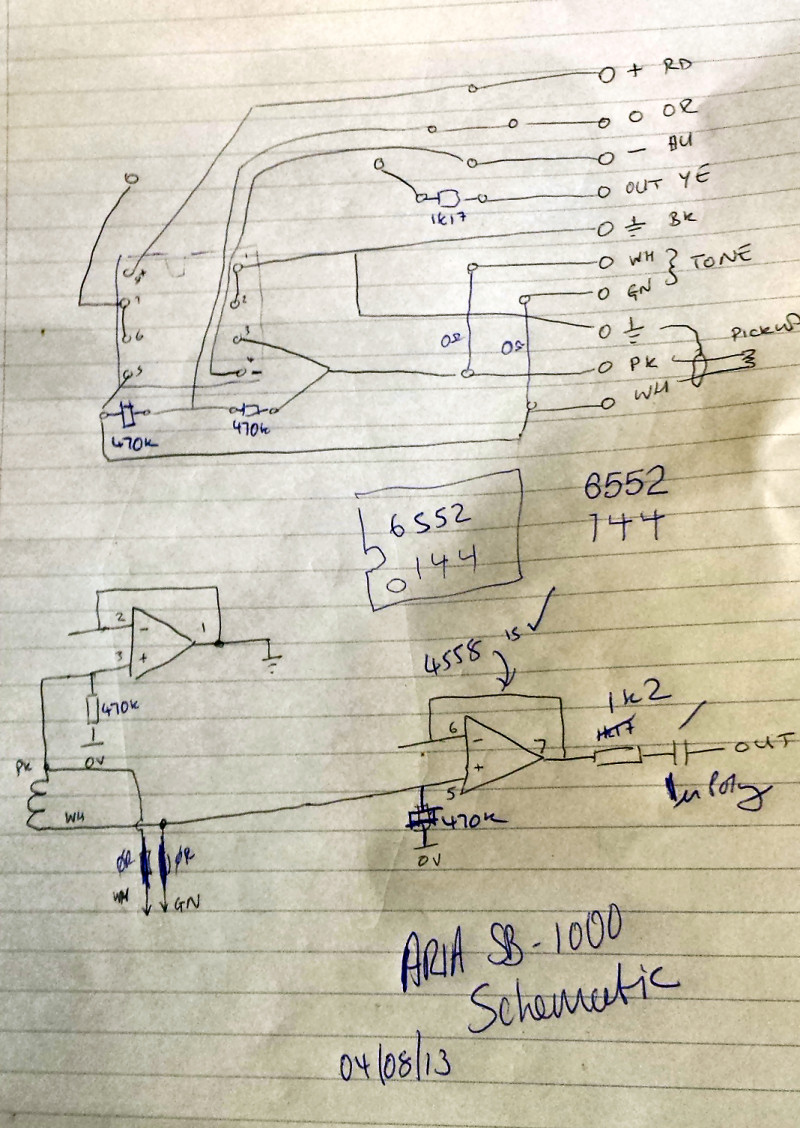

Notes from reverse engineering the potted preamp. Note that the opamp is drawn in reverse on this schematic.


Aria SB1000 bass preamp circuit

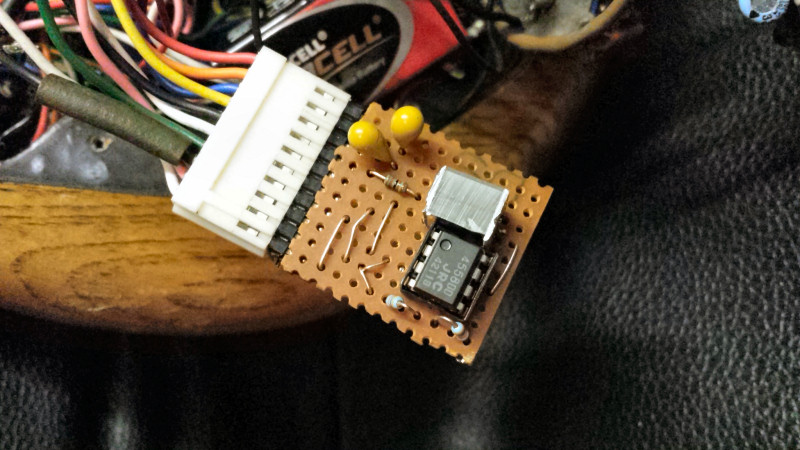

The replacement built up on stripboard prior to potting.

Download the schematic here
